Ralli Wolf> Grinders
Ralli Wolf, Grinders, HSG
Click on Image to Enlarge
Ralli Wolf, Grinders, FSG2
Click on Image to Enlarge
Ralli Wolf, Grinders, AG180
Click on Image to Enlarge
Technical Data
Type
Capacity
Watts input (full Load)
No Load speed
Approx. Weight
HSG
High Speed Grinder
6mm Collet / 6mm (collet)
300 Watts / 500 Watts
16,000 r.p.m. / 20000 r.p.m.
1.9 kg / 1.9 kg
FSG2
Flexible Shaft Grinder
6mm (collet)
370 Watts
11500 r.p.m.
5.0 kgs
AG180/AG230
Heavy-Duty-Angle-Grinder
180 x 22 x 5.5 / 220 x 22 x 5.5
2400 Watts / 2400 Watts
8500 r.p.m.  / 6800 r.p.m.
4.85 kg.  / 5.1 kg.

Ralli Wolf, Grinders, RDG25
Click on Image to Enlarge
Technical Data
Type
Collect
Watts input (full Load)
No Load speed
Approx. Weight
RDG25
High Speed Grinder
6 mm (collet)
420 Watts
25000 r.p.m.
1.5 kgs


Ralli Wolf, Grinders, GL 375
Click on Image to Enlarge
Ralli Wolf, Grinders, GQ4
Click on Image to Enlarge
Ralli Wolf, Grinders, GQ6
Click on Image to Enlarge
Technical Data
Type
Wheel Size (in mm)
Watts input (full Load)
No Load speed
Weight
GL 375
Lathe Grinder
75x13x19 mm
400 Watts.
External : 8000 r.p.m.
Internal : 19000 r.p.m.
8.5 kgs
GQ4
Straight Grinder
100 x 20 x 12.7
775 Watts
5000 r.p.m.
5.8 kgs
GQ6
Straight Grinder
150x25x15.9
1200 Watts
5600 r.p.m.
10.8 kgs

Ralli Wolf, Grinders, 36100
Click on Image to Enlarge
Ralli Wolf, Grinders, 35100
Click on Image to Enlarge
Ralli Wolf, Grinders, 35125
Click on Image to Enlarge
Technical Data
Type
Rated Voltage
Grinding wheel size
Watt inputs (Full load)
No Load Speed
Approx weight
36100
Straight Grinder
36100
100 x 20 x 12.7 mm
1000 Watts
5800 rpm
4.7 Kgs.
35100
Angle Grinder
35100
100 x 16.0 x 5.5 mm
700 Watts
10500 rpm
2.0 Kgs.
35125
Angle Grinder
35125
125 x 22.0 x 6mm
1200 Watts
9500 rpm
3.5 Kgs.

Ralli Wolf, Grinders, AG100
Click on Image to Enlarge
Ralli Wolf, Grinders, AGL7
Click on Image to Enlarge
Ralli Wolf, Grinders, AG7 180
Click on Image to Enlarge
Technical Data
Type
Wheel Size
Watts input (full Load)
No Load speed
Approx. Weight
AG100
Angle Grinder
100x16x5 mm
1020 Watts
10,500 r.p.m.
1.8 kg.
AGL7
Angle Grinder
180 mm
1800 Watts
8000 r.p.m.
5.8 kgs

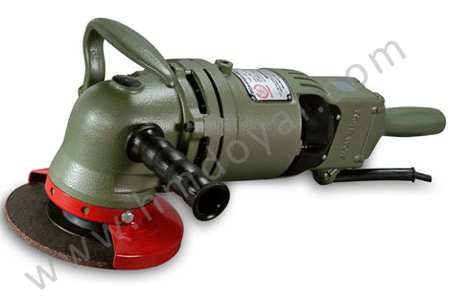

AG7 180
Heavy-Duty-Angle-Grinder
180
2200 Watts
7000 r.p.m.
11 kgs

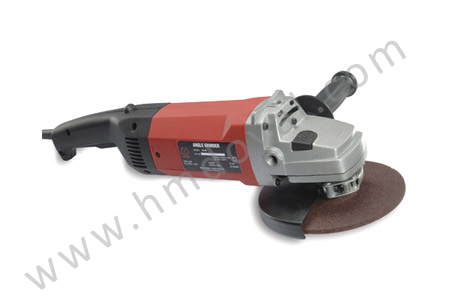

Ralli Wolf, Grinders, 35180
Click on Image to Enlarge
Technical Data
Type
Rated Voltage
Wheel type
Grinding wheel size
Watt inputs (Full load)
No Load Speed
No Load Current
Full Load Current
Insulation
Approx weight
35180
Light-Weight-Heavy-Duty-Angle-Grinder
235 AC
Depress Hub Type
Ø180 x Ø 22.0 x 5.5mm
2400W
7700rpm
4.5A
12A
Double insulated
5.5 Kgs.

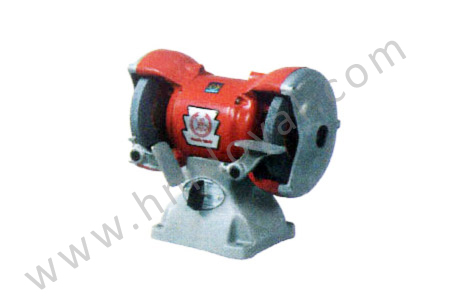

Ralli Wolf, Grinders, TG6235V/TG6440V
Click on Image to Enlarge
Technical Data
Type
Wheel Size
Watts input (full load)
No Load speed r.p.m
Approx. Weight
TG6 235V (1ph)
Bench Grinder
150 x 16 x 12.7
265 Watts
2950 r.p.m.
12.4 kgs
TG6 440V (3ph)
Bench Grinder
150 x 16 x 12.7
285 Watts
2950 r.p.m.
12.4 kgs
