Click on Image to Enlarge

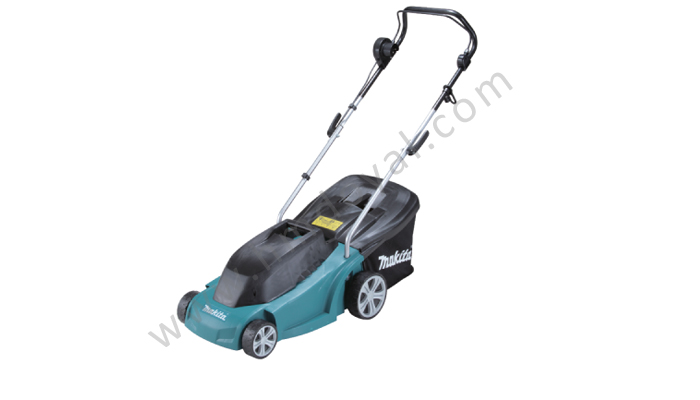

ELM3710

Specification

Continuous rating Input
Cutting width
Cutting height
Recommended mowing area
Grass box capacity
Dimensions
(L x W x H)
Net weight

1,300W
370mm (14-1/2")
20,40,55mm (3/4, 1-5/8, 2-1/8")
500m2
35L
650 x 490 x 350mm
(25-1/2" x 19-1/4" x 13-3/4")
14.2kg (31.3lbs)

Features

More maneuverable electric lawn mower.
Cutting height can be adjusted at 3 stages.
Carry handle makes easy to handle.
Lever type knob is easy to operate.
Lightweight glassbox.
Lightweight plastic deck.

ELM4110

Specification

Continuous rating Input
Cutting width
Cutting height
Recommended mowing area
Grass box capacity
Dimensions (L x W x H)
Net Weight

1,600W
410mm (16-1/8")
20, 32, 44, 60, 75mm
(3/4, 1-1/4, 1-3/4, 2-3/8, 3")
600m²
50L
760x500x410mm
25kg (55.1lbs)

Features

More maneuverable electric lawn mower.
Cutting height can be adjusted at 5 stages by one hand.
Lightweight glassbox.
Large knob is easy to grip.
Stylish PVC flat tires.
Plastic front cover protects the steel deck.

Click on Image to Enlarge

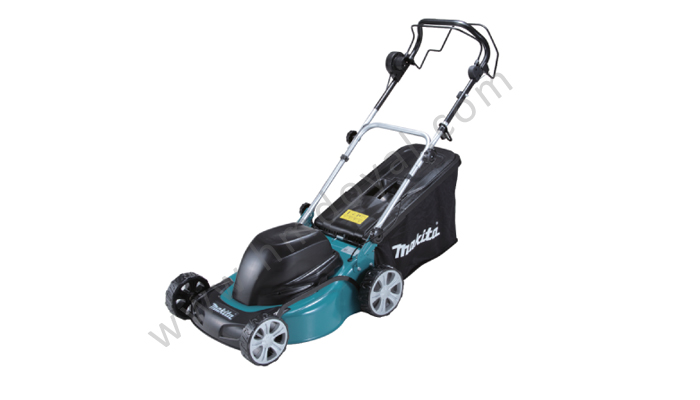

ELM4611

Specification

Continuous rating Input
Cutting width
Cutting height

Propelling speed
Recommended mowing area
Grass box capacity
Dimensions
(L x W x H)
Net weight

1,800W
460mm (18-1/8")
20, 32, 44, 60, 75mm
(3/4, 1-1/4, 1-3/4, 2-3/8, 3")
3.6km/h
1,000m2
60L
800 x 540 x 410mm
(31-1/2" x 21-1/4" x 16-1/8")
30.7kg (67.7lbs)

Features

More maneuverable electric lawn mower with self-propelling function.
Cutting height can be adjusted at 5 stages by one hand.
Lightweight glassbox.
Large knob is easy to grip.
Stylish PVC flat tires.
Plastic front cover protects the steel deck.

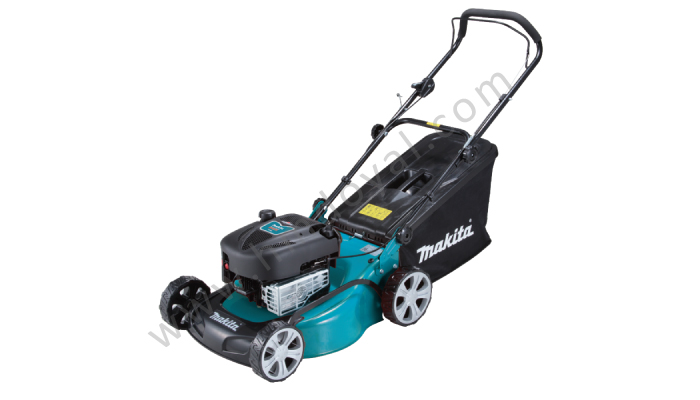

PLM4610

Specification

Displacement
Cutting width
Cutting height
Recommended mowing area
Grass box capacity
Dimensions
(L x W x H)
Net weight

B&S625, 190mL
460mm (18-1/8")
20, 32, 44, 60, 75mm
(3/4, 1-1/4, 1-3/4, 2-3/8, 3")
1,200m2
60L
800 x 540 x 400mm
(31-1/2" x 21-1/4" x 15-3/4")
29.0kg (63.9lbs)

Features

More maneuverable petrol lawn mower.
Lightweight glassbox.
Cutting height can be adjusted at 5 stages by one handle.
Large knob is easy to grip.
Rubber tire for good gripping lawn.
Plastic front cover protects the steel deck.

Click on Image to Enlarge

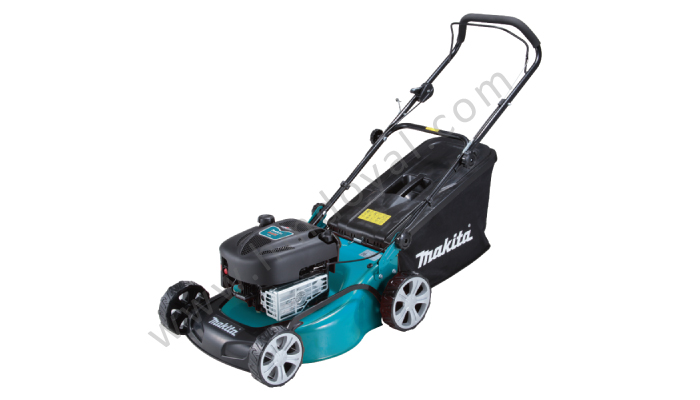

PLM5102

Specification

Continuous rating Input
Cutting height
Recommended mowing area
Grass box capacity
Dimensions
(L x W x H)
Net weight

B&S625, 190ml
20,32,44,60,75mm
1200m2
60L
800 x 540 x 400mm
(25-1/2" x 19-1/4" x 13-3/4")
29.0kg
