Makita > Angle Grinders
Makita, Angle Grinders, 9553NB
Click on Image to Enlarge

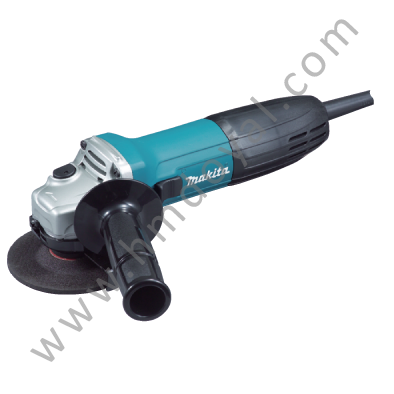

Makita, Angle Grinders, GA4030
Click on Image to Enlarge

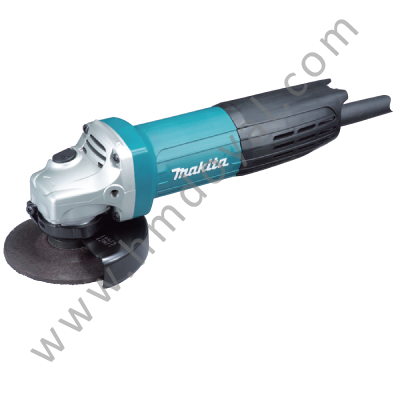

Makita, Angle Grinders, GA4032
Click on Image to Enlarge
Technical Data
Continuous rating Input
Wheel diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
9553NB
710W
100mm (4")
11,000
258 x 118 x 97mm
(10-1/8" x 4-5/8" x 3-13/16")
1.8kg (3.9lbs)
GA4030
720W
100mm (4")　
11,000
266 x 117 x 95mm
(10-1/2" x 4-5/8" x 3-3/4")
1.7kg (3.7lbs)
GA4032
720W
100mm (4")
GA4031 : 11,000
GA4031 : 9,000
259 x 118 x 104mm
(10-1/4" x 4-5/8" x 4-1/8")
1.6kg (3.5lbs)

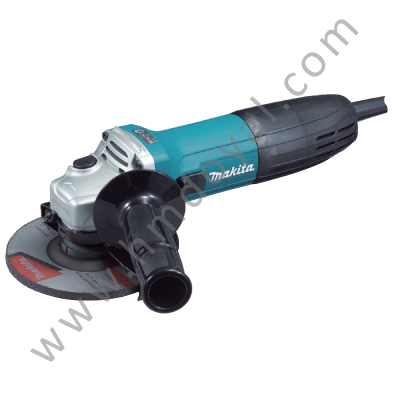

Makita, Angle Grinder, GA5030
Click on Image to Enlarge

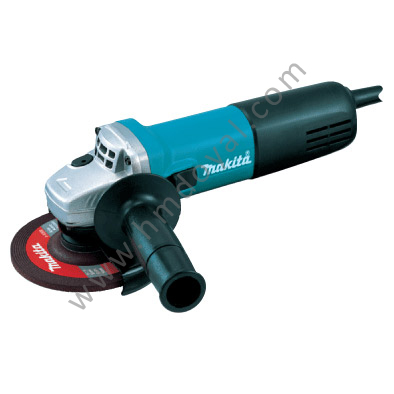

Makita, Angle Grinder, 9558NB
Click on Image to Enlarge

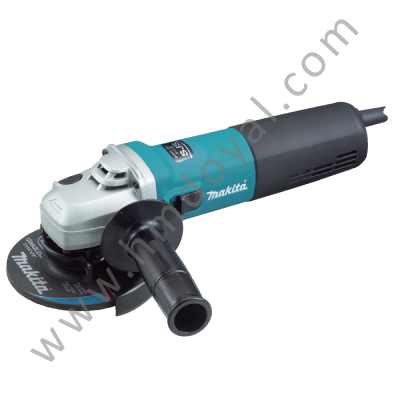

Makita, Angle Grinders, 9565H
Click on Image to Enlarge
Technical Data
Continuous rating Input
Wheel diameter
Abrasive disc diameter
Diamond wheel diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
GA5030
720W
125mm (5")
125mm (5")
125mm (5")
11,000
266 x 138 x 103mm
(10-1/2" x 5-7/16" x 4-1/16")
1.8kg (4.0lbs)
9558NB
840W
125mm (5")
125mm (5")
125mm (5")
11,000
271 x 139 x 106mm
(10-5/8" x 5-1/2" x 4-3/16")
2.1kg (4.5lbs)
9565H
1,100W
125mm (5")
125mm (5")
125mm (5")
11,000
299 x 139 x 103mm
(11-3/4" x 5-1/2" x 4")
2.3kg (5.1lbs)

Makita, Angle Grinder, 9565CVL
Click on Image to Enlarge
Technical Data
Continuous rating Input
Abrasive disc diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
9565CVL
1,400W
125mm (5")
2,000-7,800
311 x 80 x 114mm
(12-1/4" x 3-5/32" x 4-1/12")
9565CVL : 2.1kg (4.6lbs)

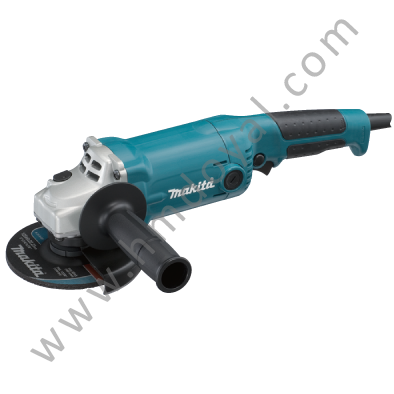

Makita, Angle Grinder, GAS5010
Click on Image to Enlarge

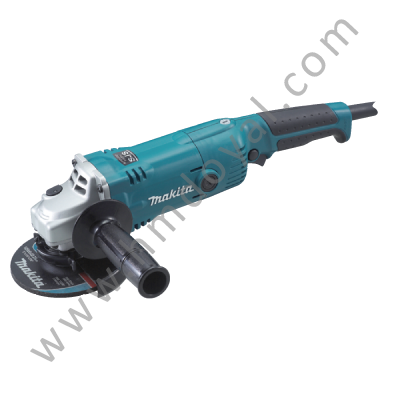

Makita, Angle Grinder, GAS5020C
Click on Image to Enlarge

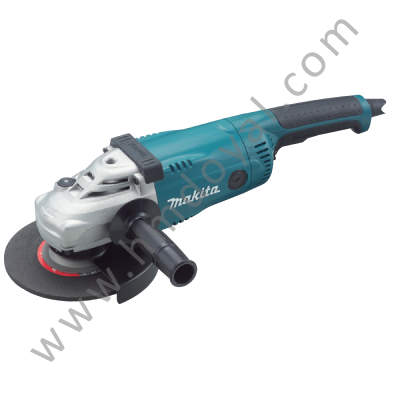

Makita, Angle Grinder, GA7020
Click on Image to Enlarge
Technical Data
Continuous rating Input
Wheel diameter
Abrasive disc diameter
Diamond wheel diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
GA5010
1,050W
125mm (5")
125mm (5")
125mm (5")
11,000
356 x 139 x 112mm
(14" x 5-1/2" x 4-3/8")
2.6kg (5.8lbs)
GA5020C
1,450W
125mm (5")
125mm (5")
125mm (5")
10,000
390 x 139 x 120mm
(15-3/8" x 5-1/2" x 4-3/4")
2.9kg (6.4lbs)
GA7020
2,200W
180mm (7")
-
-
8,500
473 x 200 x 140mm
(18-5/8" x 7-7/8" x 5-1/2")
5.5kg (12.2lbs)

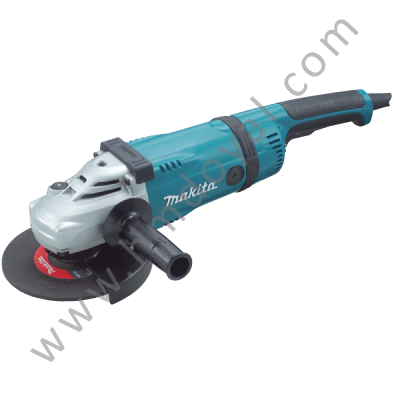

Makita, Angle Grinder, GA7030
Click on Image to Enlarge

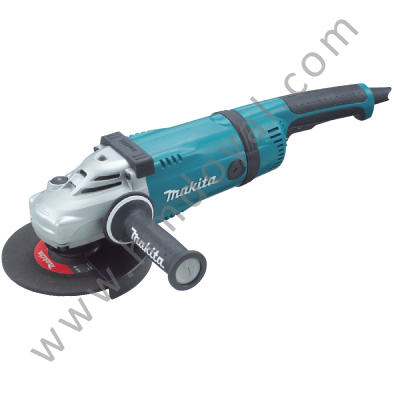

Makita, Angle Grinder, GA7040S
Click on Image to Enlarge

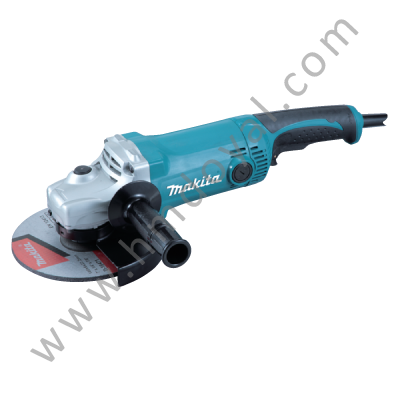

Makita, Angle Grinder, GA 7050
Click on Image to Enlarge
Technical Data
Continuous rating Input
Wheel diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
GA7030
2,400W
180mm (7")
8,500
(19-3/4" x 7-7/8" x 5-1/2")
511 x 200 x 140mm
(20-1/8" x 7-7/8" x 5-1/2")
6.0kg (13.3lbs)
GA7040S
2,600W
180mm (7")
8,500
511 x 200 x 140mm
(20-1/8" x 7-7/8" x 5-1/2")
6.4kg (14.2lbs)
GA7050
2,000W
180mm (7")
8,500
432 x 200 x 132mm
(17" x 7-7/8" x 5-3/16")
4.5kg (9.9lbs)

Makita, Angle Grinder, GA7050R01
Click on Image to Enlarge

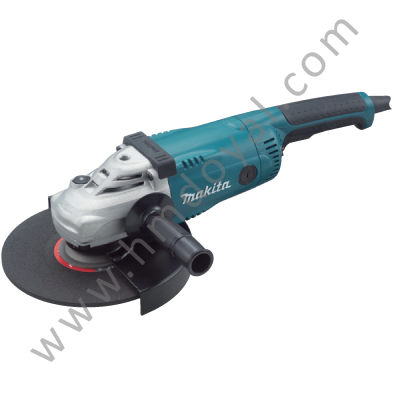

Makita, Angle Grinder, GA9020
Click on Image to Enlarge
Makita, Angle Grinder, GA9030
Click on Image to Enlarge
Technical Data
Continuous rating Input
Wheel diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
GA7050R01
2,000W
180mm (7")
8,500
455 x 200 x 132mm
(17-7/8" x 7-7/8" x 5-3/16")
4.6kg (10.1lbs)
GA9020
2,200W
230mm (9")
6,600
473 x 250 x 140mm
(18-5/8" x 9-7/8" x 5-1/2")
5.8kg (12.8lbs)
GA9030
2,400W
230mm (9")
6,600
503 x 250 x 140mm
(19-3/4" x 9-7/8" x 5-1/2")
6.3kg (13.9lbs)

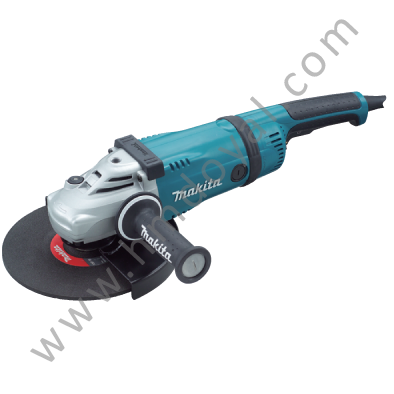

Makita, Angle Grinders, GA9040S
Click on Image to Enlarge

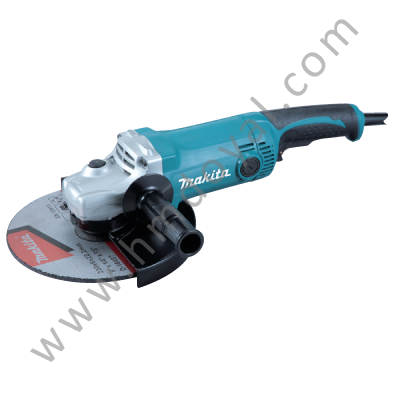

Makita, Angle Grinders, GA9050
Click on Image to Enlarge

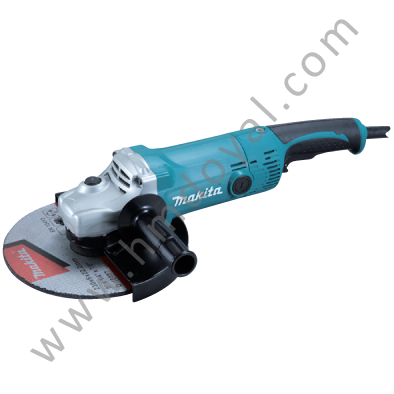

Makita, Angle Grinders, GA9050R01
Click on Image to Enlarge
Technical Data
Continuous rating Input
Wheel diameter
No load speed (rpm)
Dimensions
(L x W x H)
Net weight
GA9040S
2,600W
230mm (9")
6,600
503 x 250 x 140mm
(19-3/4" x 9-7/8" x 5-1/2")
6.7kg (14.8lbs)
GA9050
2,000W
230mm (9")
6,600
432 x 250 x 132mm
(17" x 9-7/8" x 5-3/16")
4.8kg (10.6lbs)
GA9050R01
2,000W
230mm (9")
6,600
455 x 250 x 132mm
(17-7/8" x 9-7/8" x 5-3/16")
4.8kg (10.6lbs)
