Bosch > Impact Drills

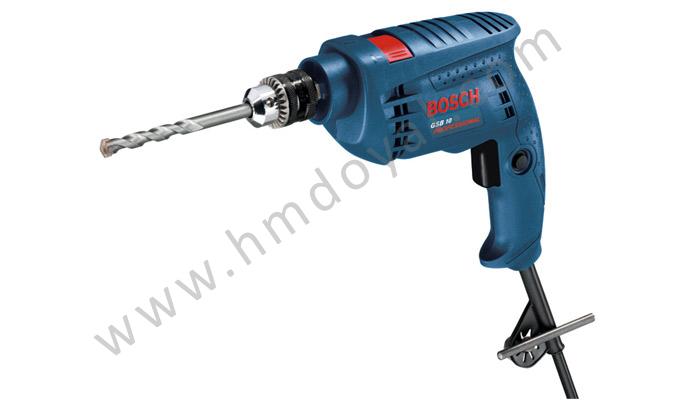

Bosch, Impact Drills, GSB 10
Click on Image to Enlarge

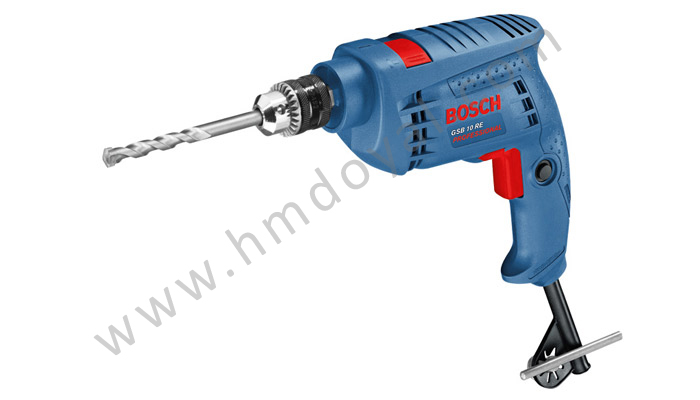

Bosch, Impact Drills, GSB 10 RE
Click on Image to Enlarge

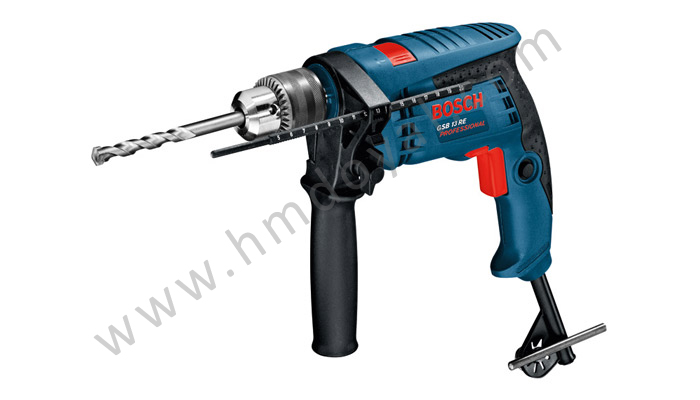

Bosch, Impact Drills, GSB 13 RE
Click on Image to Enlarge
Technical Data
Part No.
Drilling Dia. In Concrete
Drilling Dia. In Wood
Drilling Dia. In Steel
Power Input
Impact Rate
No-Load Speed
Weight
GSB 10
0601 216 0K4
10 mm
20 mm
8 mm
500 W
0-25700 ipm
0-2600 rpm
1.5 Kg.
GSB 10 RE
0601 216 1F3
10 mm
20 mm
8 mm
500 W
0-25700 ipm
0-2600 rpm
1.5 Kg.
GSB 13 RE
0601 217 1F3
13 mm
25 mm
10 mm
600 W
0-48000 ipm
0-2800 rpm
1.6 Kg.

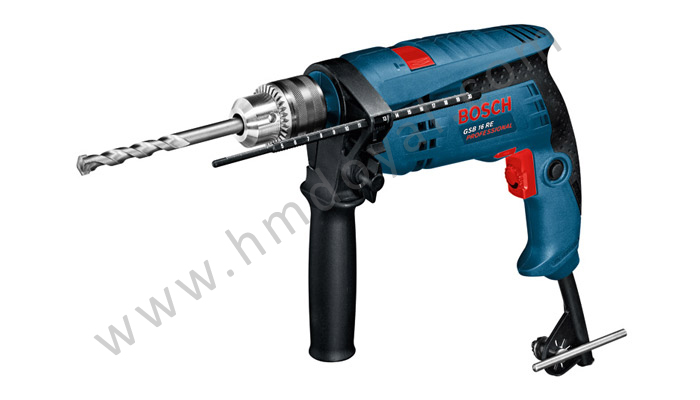

Bosch, Impact Drills, GSB 16 RE
Click on Image to Enlarge

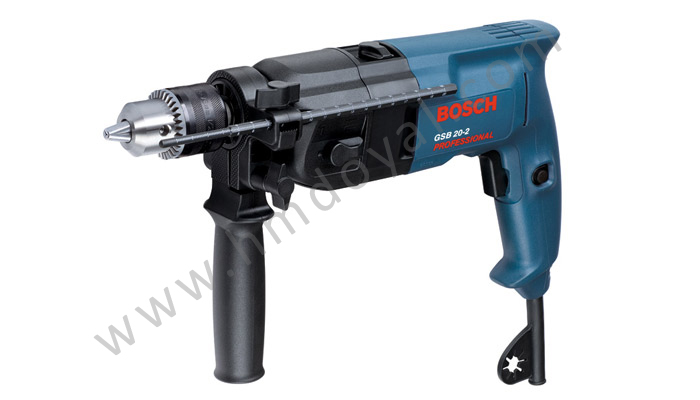

Bosch, Impact Drills, GSB 20-2 RE
Click on Image to Enlarge

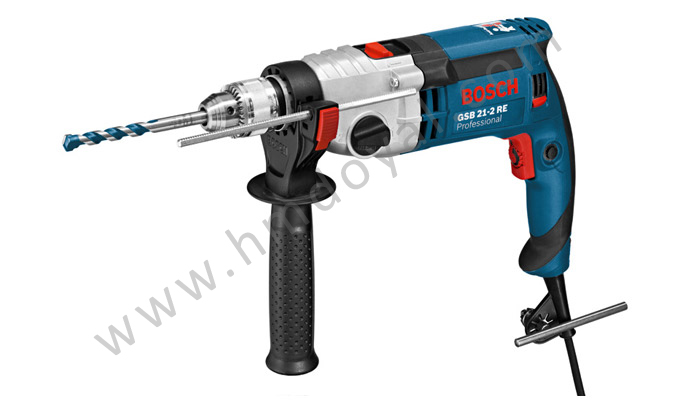

Bosch, Impact Drills, GSB 21-2 RE
Click on Image to Enlarge
Technical Data
Part No.
Drilling Dia. In Concrete
Drilling Dia. In Masonry
Drilling Dia. In Wood
Drilling Dia. In Steel
Power Input
Impact Rate
No-Load Speed
Weight
GSB 16 RE
0601 218 1K0
16 mm
18 mm
30 mm
13 mm
701 W
0-41600 ipm
0-2600 rpm
1.9 Kg.
GSB 20-2 RE
0601 184 607
20 / 13mm
22 / 16 mm
40 / 25 mm
13 / 8 mm
701 W
16000-48000 ipm
1000-3000 rpm
2.1 Kg.
GSB 21-2 RE
0601 19C 600
22 / 13 mm
24 / 16mm
40 / 25 mm
16 / 8 mm
1100 W
015300 / 51000 ipm
0-900 / 0-3000 rpm
2.85 Kg.

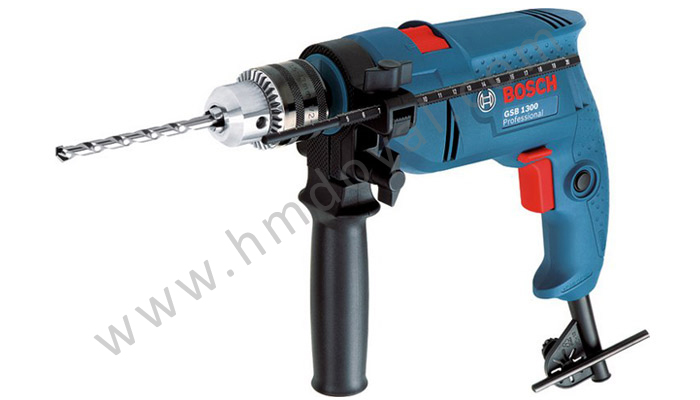

Bosch, Impact Drills, GSB 1300
Click on Image to Enlarge

Technical Data
Rated power input
Drilling dia. in masonry
Drilling dia. in wood
GSB 1300
550 W
13 mm
25 mm
