H M Doyal & Co.

Click on Image to Enlarge

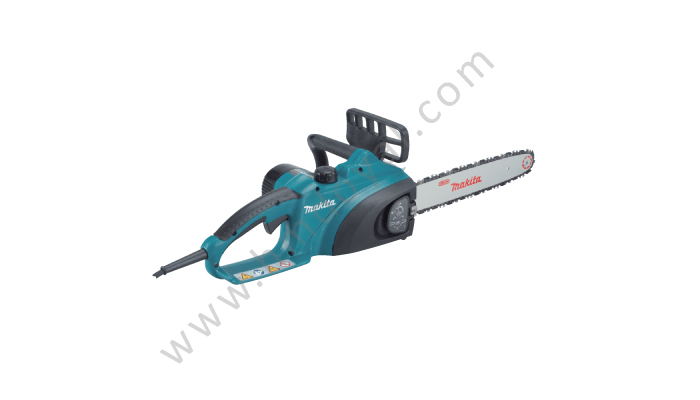

UC3520A

Specification

Continuous rating
Input
Chain speed per
minute
Guide bar length
Chain blade

Dimensions (L x W x H)
Net weight

1,800W
800m (2,620ft)
350mm (12")
Pitch : 3/8"
Gauge : 0.043/0.050"
436 x 244 x 200mm

(17-1/8" x 9-5/8" x 7-7/8")
4.4kg (9.6lbs)

Features

Easy operation and maintenance.
High torque delivered by powerful motor.
Tool-less blade change and adjustment.
Flat external design provides increased.
Rubberized soft rear grip.
Ergonomically positional and angled front grip.

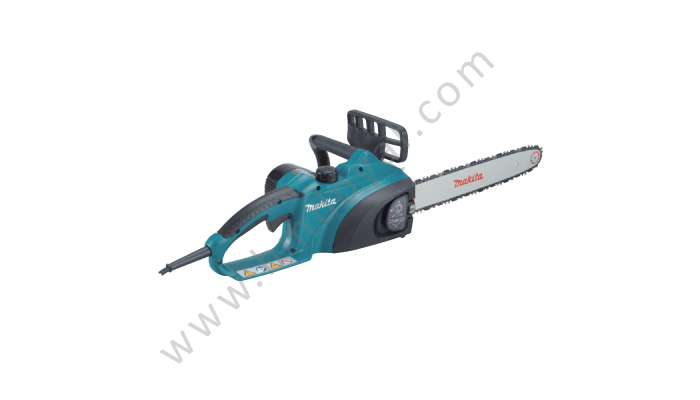

UC4020A

Specification

Continuous rating Input
Chain speed per minute
Guide bar length
Chain blade

Dimensions (L x W x H)
Net weight

1,800W
800m (2,620ft)
400mm (12")
Pitch : 3/8"
Gauge : 0.043/0.050"
436 x 244 x 200mm
(17-1/8" x 9-5/8" x 7-7/8")
4.4kg (9.7lbs)

Features

Click on Image to Enlarge

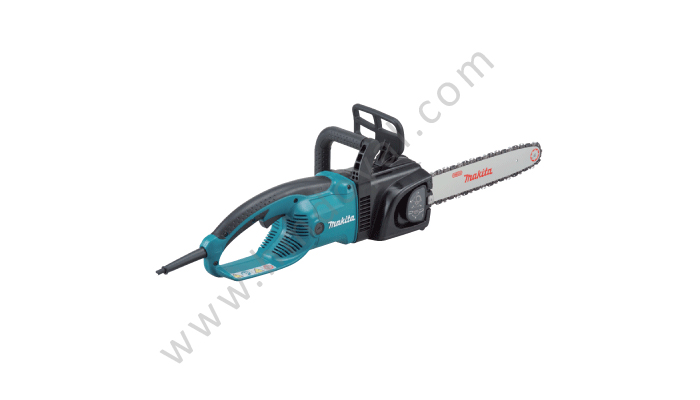

UC3530A

Specification

Continuous rating Input
Chain speed per minute
Guide bar length
Chain blade

Chain oil tank
Dimensions (L x W x H)
Net weight

1,800W
800m (2,600ft)
350mm (14")
Pitch : 3/8"
Gauge : 0.050"
0.14L
492 x 201 x 220mm
(19-3/8" x 7-7/8" x 8-5/8")
5.1kg (11.3lbs)

Features

Excellent in heavy duty application.
Current limiter protects motor from burn-out by cutting off the power to motor when overloaded.
Toolless blade change and adjustment without removing sprocket cover.
Ergonomically designed handle with rubberized soft grip provides more control and comfort.
Enhanced protection against chain oil leakage.
Large separate-type metal spike bumper.

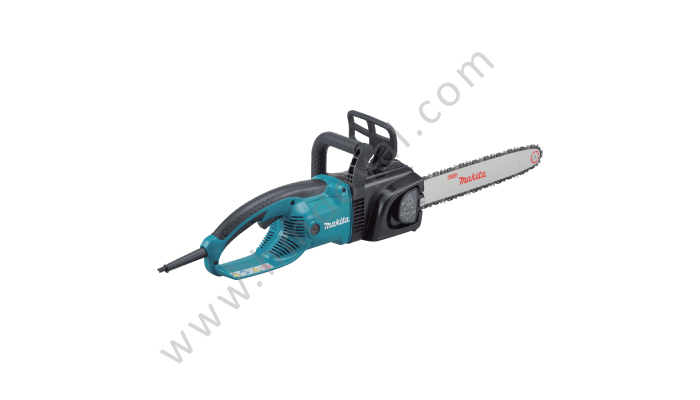

UC4030A

Specification

Continuous rating Input
Chain speed per minute
Guide bar length
Chain blade
Chain oil tank

Dimensions (L x W x H)
Net weight

1,800W
800m (2,600ft)
400mm (16")
Pitch : 3/8"
Gauge : 0.050"
0.14L
492 x 201 x 220mm
(19-3/8" x 7-7/8" x 8-5/8")
5.2kg (11.4lbs)

Features

Click on Image to Enlarge

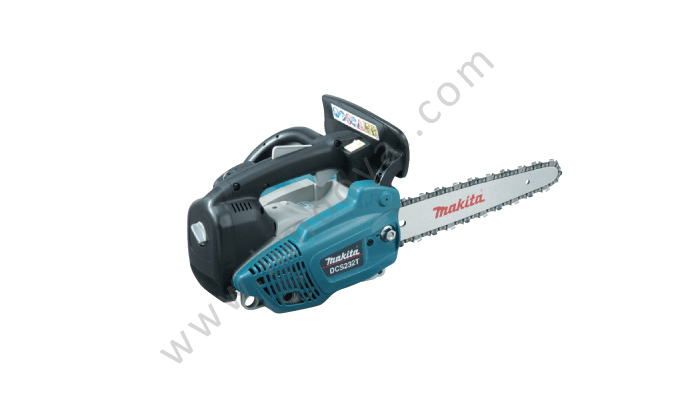

DCS232T

Specification

Standard guide bar
Chain blade

Displacement
Power rating
Fuel tank
Chain oil tank
Power head weight

250mm (10")
Pitch : 1/4" or 3/8"
Gauge : 0.050"
22.2mL
0.74kw / 1.02PS
0.2L
0.19L
2.5kg (5.5lbs)

Features

Lightweight & Easy Start System.
Easy to handle for pruning orchard roadside and park trees.
Employment of the "Lift-up" type carburetor allows idling start to prevent the chain blade run at start-ups.
Automatic adjustable chain oiling.
Chain blade pitch : 3/8” for sprocket nose bar, 1/4” for carving bar.

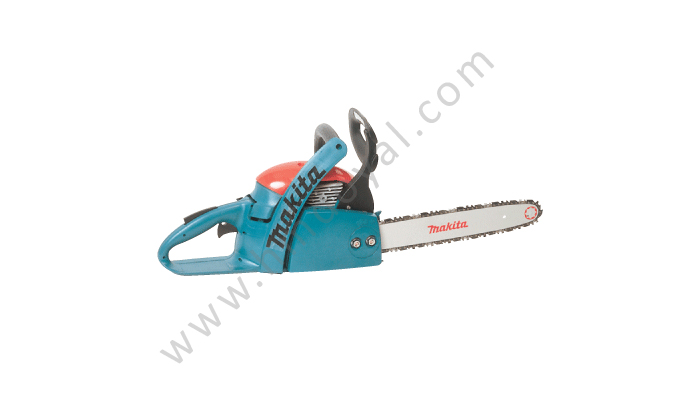

DCS4610

Specification

Standard guide bar
Chain blade

Displacement
Engine power
Fuel tank
Chain oil tank
Power head weight

350, 400mm (14, 16")
Pitch : 3/8"
Gauge : 0.058"
45.1mL
1.7kW / 2.3PS
0.37L
0.25L
4.75kg (10.5lbs)

Features

Entry class chain saw for home and garden with more power.
Touch & Stop switch for easy operating.
Large tank caps for easy filling of fuel and chain oil.
2 guide-bar studs.

Click on Image to Enlarge

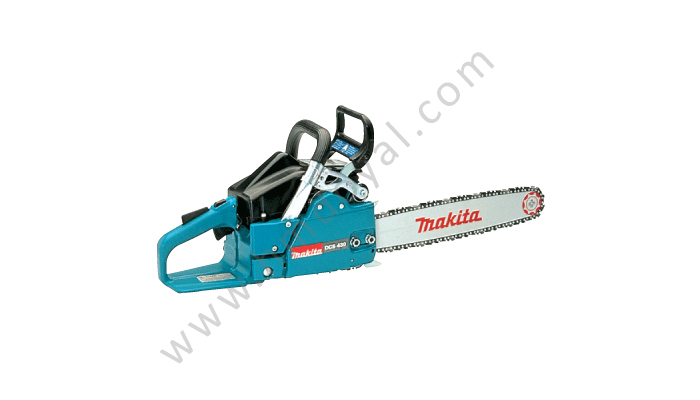

DCS430

Specification

Standard guide bar
Chain blade

Displacement
Engine power
Fuel tank
Chain oil tank
Power head weight

380, 450mm (15, 18")
Pitch : 3/8"
Gauge : 0.058"
43mL
2.0kW / 2.8PS
0.56L
0.28L
4.5kg (9.9lbs)

Features

Rugged, robust and all-round saw for tree felling, ripping logs, limbing and brush clearing.
Inertia chain brake.
External electronic ignition.
Automatic adjustable chain oilier.
Anti-vibration design.

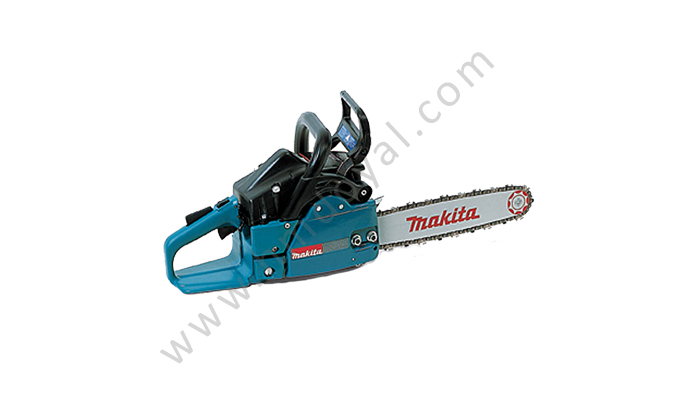

DCS5200

Specification

Standard guide bar
Chain blade

Displacement
Engine power
Fuel tank
Chain oil tank
Power head weight

350mm (14")
Pitch : 3/8"
Gauge : 0.058"
52mL
2.7kW
0.28L
0.25L
5.15kg
