Hitachi > Cordless Tools

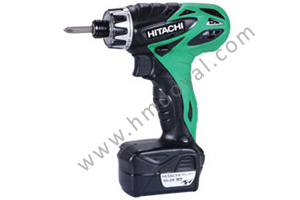

Hitachi, Cordless Tools, DB 10 DL
Click on Image to Enlarge

Technical Data
Max. Torque in lock
Slip Torque
Drive
Drill Mild Steel
LED Light
Battery Voltage
No Load Speed
Weight
DB10DL
10 Nm
5 mm
1.0-6.0 Nm,(21-stage)
1/4" Hex Bit Shank
Yes
10.8 V
0-400 rpm
0.8 Kg.

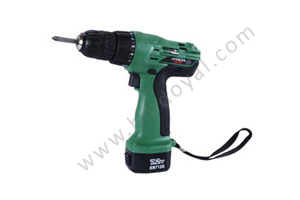

Hitachi, Cordless Tools, DS7DF
Click on Image to Enlarge

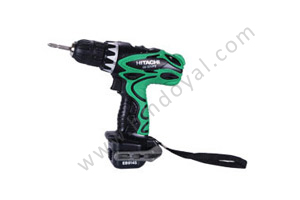

Hitachi, Cordless Tools, DS9DVF3
Click on Image to Enlarge

Technical Data
Max. Torque in lock
Drill Chuck
Mild Steel
Soft Wood
Wood Screw
Machine Screw
Torque Setting and clutch
Battery Voltage
No Load Speed
Weight
DS7DF
8 Nm
0.8-10 mm
10 mm
15 mm
5.1 mm*32 mm
6 mm
0.5-4 Nm
7.2 V
0-600 rpm
1.2 Kg.
DS9DVF3
22 Nm
0.8-10 mm
10 mm
21 mm
5.8 mm*45 mm
6 mm
1-6 Nm
9.6 V
0-280-840 rpm
1.4 Kg.


Hitachi, Cordless Tools, DS12DVF3
Click on Image to Enlarge

Technical Data
Max. Torque in lock
Drill Chuck
Mild Steel
Soft Wood
Wood Screw
Torque Setting
Battery Voltage
No Load Speed High
No Load Speed Low
Weight
DS12DVF3
26 Nm
0.8-10 mm
12 mm
25 mm
5.8 mm*63 mm
1-6 Nm
12 V
0-1,050 rpm
0-350 rpm
1.5 Kg.

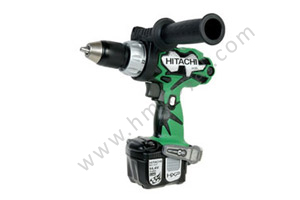

Hitachi, Cordless Tools, DS14DL
Click on Image to Enlarge

Technical Data
Max. Torque in lock
Drill Chuck
Capacity:Mild Steel
Soft Wood
Wood Screw
Torque:22 Stage
Battery Voltage
No Load Speed Low
Weight
DS14DL
52 Nm
1.5-13 mm
13 mm
45 mm
8 mm*75 mm
2-10 Nm
14.4 V
0-750/1,500 rpm
2.0 Kg.

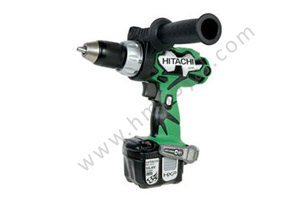

Hitachi, Cordless Tools, DV14DL
Click on Image to Enlarge

Technical Data
Max. Torque in lock
Drill Chuck
Brick
Wood Screw
Machine Screw
Mild Steel
Soft Wood
Torque:22 stage
Battery Voltage
No Load Speed Low
Weight
DV14DL
52 Nm
1.5-13 mm
14 mm
8 mm*75 mm
6 mm
13 mm
45 mm
1.5-7 Nm
14.4 V
0-1,750 rpm
2.1 Kg.

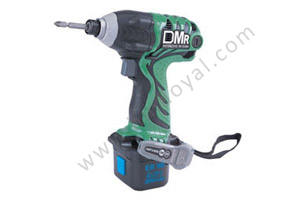

Hitachi, Cordless Tools, WH9DMR
Click on Image to Enlarge

Technical Data
Max. Torque
Capacity Bolt
High Tension Bolt
Machine Screw
Drive
Battery Voltage
Full Load Impact Rate
No Load Speed
Weight
WH9DMR
105 Nm
5-12 mm
5-10 mm
4-8 mm
1/4" Hex Bit Shank
9.6 V
0-3,200 ipm
0-2,600 rpm
1.4 kg

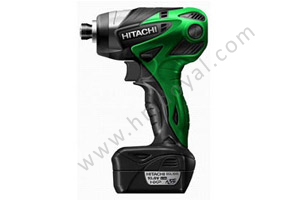

Hitachi, Cordless Tools, WH10DL
Click on Image to Enlarge

Technical Data
Capacity Bolt
Drive
Max.Torque
No Load Speed
LED Light
Battery Voltage
Battery Capacity
Battery Recharging Caution Lamp
Weight
WH10DL
5-12 mm
1/4" Hex Bit Shank
105 Nm
0-2300 rpm
Yes
10.8 V
1.5 Ahx2
Yes
1 Kg.

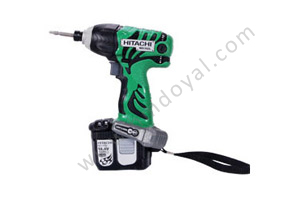

Hitachi, Cordless Tools, WH14DL
Click on Image to Enlarge

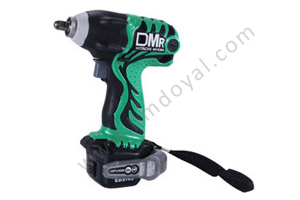

Hitachi, Cordless Tools, WR9DMR
Click on Image to Enlarge

Technical Data
Capacity Bolt
Drive
Ordinary Screw
Ordinary Bolt
High Strength Bolt
Maximum Torque
Battery Voltage
No Load Speed
Impact Range
Weight
WH14DL
6-14 mm
1/4" Hex Bit Shank
4-10 mm
6-14 mm
6-12 mm
140 Nm
14.4 V
0-2,600 rpm
0-3,200 ipm
1.5 Kg.
WR9DMR
--
3/8" Square Bit Shank
--
6-14 mm
6-10 mm
115 Nm
9.6 V
0-2,600 rpm
0-3,200 ipm
1.4 Kg.
