Click on Image to Enlarge

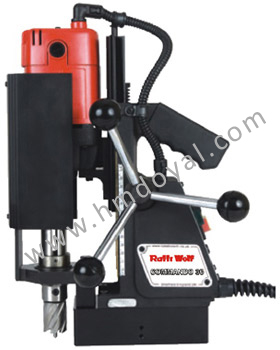

Ralli Wolf, Magnetic Drills, Commando 30
Click on Image to Enlarge

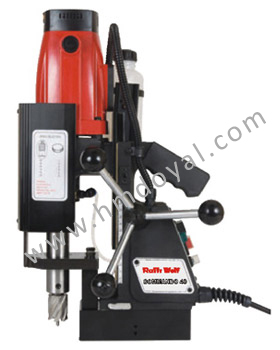

Ralli Wolf, Magnetic Drills, Commando 40
Click on Image to Enlarge

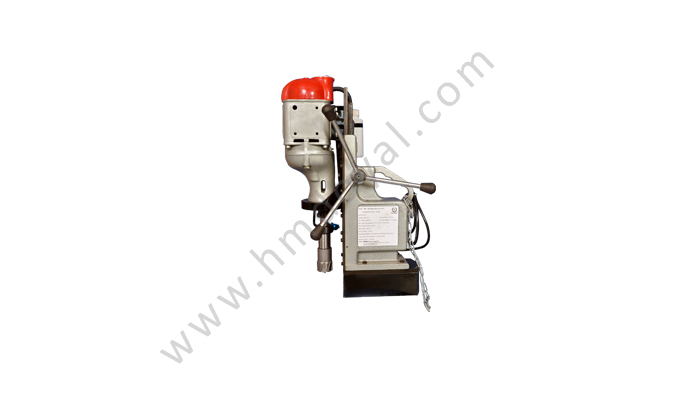

NW50
Motor specification
No load rpm
Max hole cutting capacity
Overall dimensions
Net weight
Spindle bore
Magnetic adhesion
Safety features
Commando 30
110v full load 7.8amps 800w
230v full load 4amps 800w
600rpm
30mm dia x 25mm deep
Height 420mm max
Width 170mm
Length 250mm
12.2 kgs
19.05 (3/4")
750 kgs
Electronic overload
Commando 40
110v full load 11amps 1100w
230v full load 5amps 1100w
350 to 600 rpm
40mm dia x 50mm deep
Height 510mm max
Width 180mm Exc. bottle
Length 265mm
14.6 kgs
19.05 (3/4")
750 kgs
Clutch and electronic overload

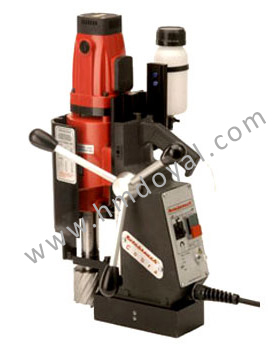

Ralli Wolf, Magnetic Drills, Commando 65
Click on Image to Enlarge
Ralli Wolf, Magnetic Drills, Commando 100
Click on Image to Enlarge

Commando 65
110v full load 14amps 1400w
230w full load 6.0amps 1400w
160 to 640 rpm
65mm dia x 50mm deep
Height 570mm max
Width 190mm Exc. bottle
Length 300mm
19.8 kgs
19.05 (3/4")
1200 kgs
Clutch and electronic overload
Commando 100
110v full load 18amps 1100w
230v full load 9amps 1100w
40 to 480 rpm
100 mm dia x 100 mm deep
Height 708 mm max
Width 190 mm Exc. bottle
Length 340 mm
26 kgs
3MT
3000 kgs
Clutch and electronic overload







Click on Image to Enlarge



Click on Image to Enlarge

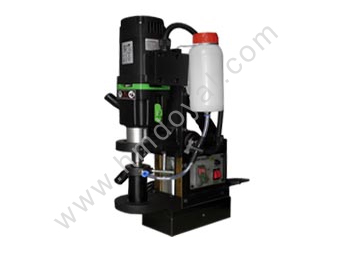

KDS 42
Tool Holder : Direct arbor 19 mm Weldon
Morse Taper : MK 2 / MT 2
Core Cutter diameter (mm) : 12 - 42
Core Cutting Depth (mm) : 50
Twist Drill Diameter (mm) : 20
Stroke (mm) : 215
Sleeve Bore (mm) : 19.05 (3/4”)
No Load Speed range (rpm) : 730 / 400
Rated Load Speed range (rpm) : 450 / 250
Mechanical safety clutch : Not Available
Magnet Size (mm) : 200X100X50
Magnet Force (KGF) : 1350
Motor Input (W) : 1150
Power Supply (V) : 220 -240
Weight of machine (Kg) : 21

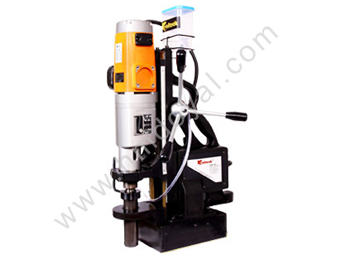

KDS 85-4
Tool Holder : Direct arbor 19 mm Weldon
Morse Taper : MK 3 / MT 3
Core Cutter diameter (mm) : 12 - 85
Core Cutting Depth (mm) : 50 *
Twist Drill Diameter (mm) : 32
Stroke (mm) : 351
Sleeve Bore (mm) : 19.05 (3/4”)
No Load Speed range (rpm) : 420 / 350 / 260 / 220
Rated Load Speed range (rpm) : 220 / 190 / 140 / 110
Mechanical safety clutch : Not Available
Magnet Size (mm) : 225X125X70
Magnet Force (KGF) : 2250
Motor Input (W) : 1050
Power Supply (V) : 220 -240
Weight of machine (Kg) : 35



Click on Image to Enlarge

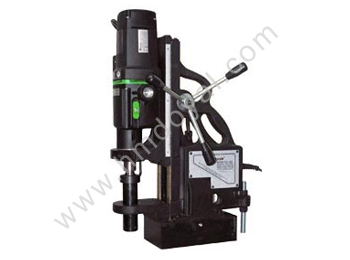

KDS 85-4
Tool Holder : Direct arbor 19 mm Weldon
Morse Taper : MK 3 / MT 3
Core Cutter diameter (mm) : 12 - 85 +
Core Cutting Depth (mm) : 50 *
Twist Drill Diameter (mm) : 32
Stroke (mm) : 340
Sleeve Bore (mm) : 19.05 (3/4”)
No Load Speed range (rpm) : 740 / 460 / 330 / 215
Rated Load Speed range (rpm) : 385 / 245 / 175 /110
Mechanical safety clutch : Not Available
Magnet Size (mm) : 225X125X70
Magnet Force (KGF) : 2250
Motor Input (W) : 1700
Power Supply (V) : 220 -240
Weight of machine (Kg) : 35
